Automatic Winding Machines

Automatic Winding Machines
Li Battery

Polymer

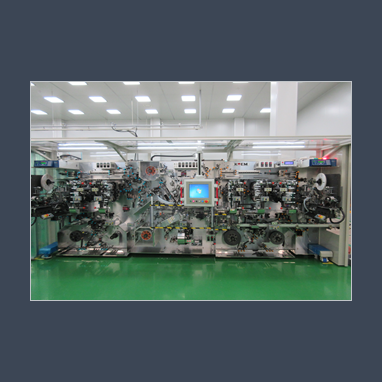

Automatic Winding Machine For Lithium Battery Polymer Type

  • Smart Phone
  • Note PC
  • Tablet
  • Power Bank
Characteristics
  • - Automatic Electrode and Separator Change System
  • - Ultrasonic tab welding units
  • - High speed of EPC (Edge Position Control)
  • - CCD vision system for alignments, tab and tape position
  • - Controlled by motion controller made by Omron Delta Tau (USA)
  • - Variable Winding Speed Control System for different mandrel angles

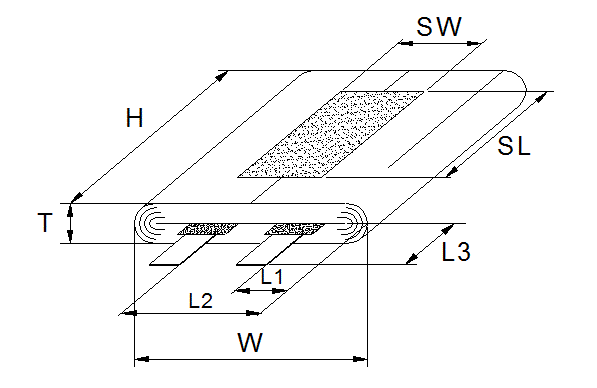

Element Size
  • Size Sym Dimensions(mm) Tolerances
    Height H 50~150 0~0.5
    Width W 30~120 ± 0.3
    Thickness T 2~10 ± 0.2

Automatic Winding Machines
Li Battery

Cylindrical

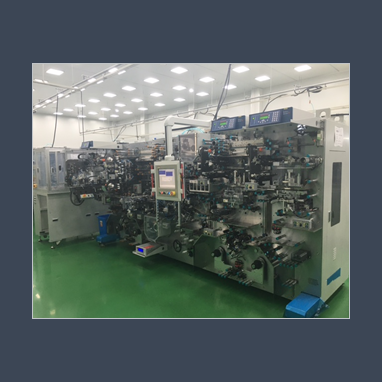

Automatic Winding Machine For Lithium Battery Cylindrical Type

  • Electric Vehicle
  • Motorcycle/E-Bike
  • Power Tools
  • UPS/ESS
Specification
  • - Automatic Electrode and Separator Change System
  • - Multiple tabs (Anode and Cathode) ultrasonic welding system
  • - Precise welding system for 2 Cathode tabs
  • - CCD vision system for tab and tape position
  • - High speed of EPC (Edge Position Control)
  • - Controlled by motion controller made by Omron Delta Tau (USA)

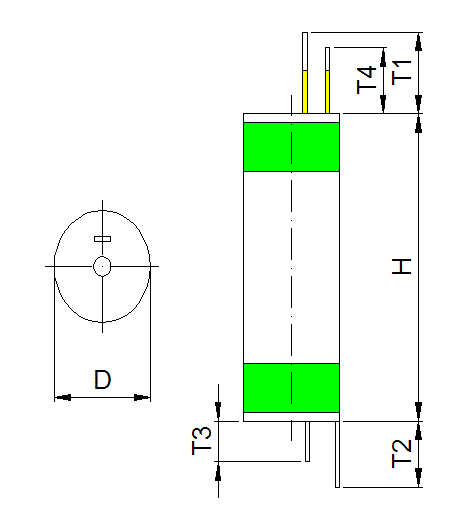

Element Size
  • Size Sym Dimensions(mm) Tolerances
    J/R Diameter D 17 ~ 26 ±0.2
    J/R Height H 50 ~ 70 ±0.5

Automatic Winding Machines
Li Battery

Large Size Prismatic

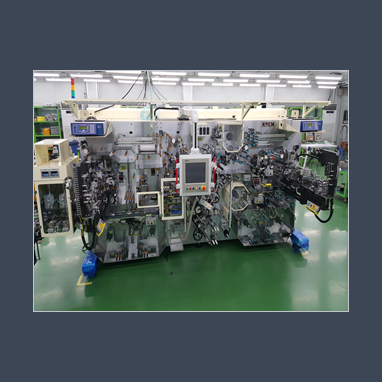

Automatic Winding Machine For Lithium Battery Large Size Prismatic Type

  • Electric Vehicle
  • UPS/ESS
Specification
  • - Automatic Electrode and Separator Change System
  • - High speed of EPC (Edge Position Control)
  • - CCD vision system for alignments and tab size and shape
  • - Controlled by motion controller made by Omron Delta Tau (USA)
  • - Variable Winding Speed Control System for different mandrel angles
Element Size

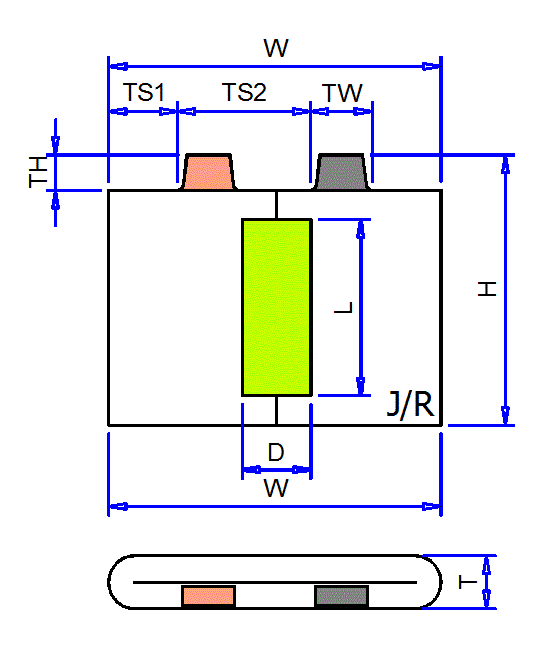

Multi Tab Type
  • Size Sym Dimensions(mm) Tolerances
    J/R Height H 70~220 ± 0.7
    J/R Width W 100~180 ± 0.3
    J/R Thickness T 5~30 -

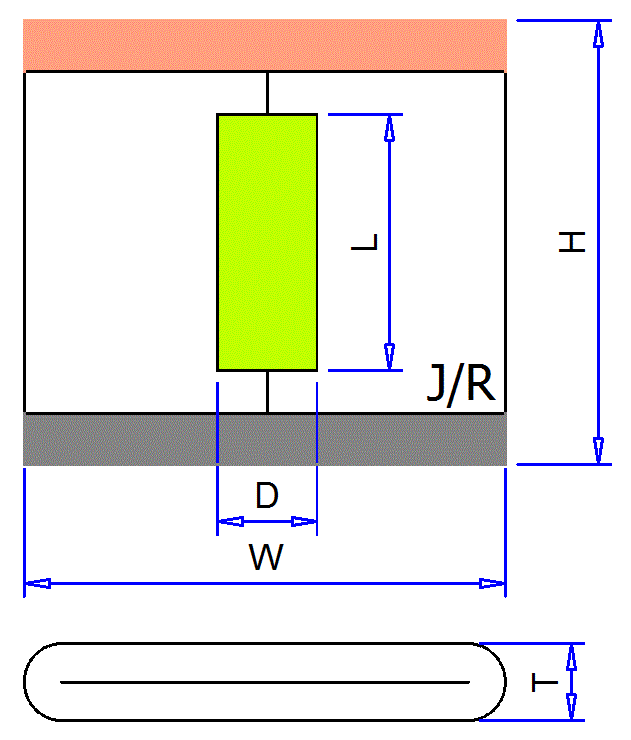

Element Size
Whole Tab Type
  • Size Sym Dimensions(mm) Tolerances
    J/R Height H 70~220 ± 0.7
    J/R Width W 100~180 ± 0.3
    J/R Thickness T 5~30 -
