Automatic Winding Machines

Automatic Winding Machines
Li Battery

Polymer

Automatic Winding Machine For Lithium Battery Polymer Type

  • Electric Vehicle
  • Motorcycle/E-Bike
  • Forklift/Golf Car
  • UPS/ESS
Characteristics
  • - Automatic Electrode and Separator Change System
  • - Ultrasonic tab welding units
  • - High speed of EPC (Edge Position Control)
  • - CCD vision system for alignments, tab and tape position
  • - Controlled by motion controller made by Omron Delta Tau (USA)
  • - Variable Winding Speed Control System for different mandrel angles
Element Size
  • Size Sym Dimensions(mm) Tolerances
    Height H 50~150 0~0.5
    Width W 30~120 ± 0.3
    Thickness T 2~10 ± 0.2
    SEAL TAPE Width SW 8~30 ± 0.2
    SEAL TAPE Length SL 40~150 ± 1.0
    Anode Tab Positon L1 - ± 0.5
    Catchode Tab Position L2 - ± 0.5
    Tab Length from SEPA L3 15~30 ± 0.5

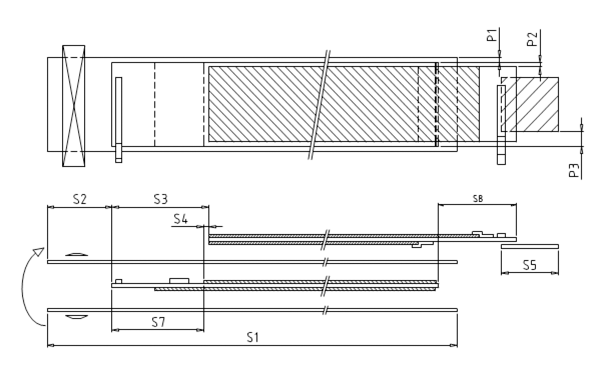

Winding Drawing

Automatic Winding Machines
Li Battery

Cylindrical

Automatic Winding Machine For Lithium Battery Cylindrical Type

  • Electric Vehicle
  • Motorcycle/E-Bike
  • Forklift/Golf Car
  • UPS/ESS
Specification
  • - Automatic Electrode and Separator Change System
  • - Multiple tabs (Anode and Cathode) ultrasonic welding system
  • - Precise welding system for 2 Cathode tabs
  • - CCD vision system for tab and tape position
  • - High speed of EPC (Edge Position Control)
  • - Controlled by motion controller made by Omron Delta Tau (USA)
Element Size
  • Type Size Sym Dimensions(mm) Tolerances
    Multi Single J/R Diameter D 17 ~ 26 ±0.2
    J/R Height H 50 ~ 70 ±0.5
    Cathode Inner Tab Length T1 14 ~ 22 ± 0.5
    Anode Outer Tab Length T2 13 ~ 18 ± 0.5
    Multi Anode Inner Tab Length T3 7 ~ 13 ± 0.5
    Cathode Outer Tab Length T4 9 ~ 17 ± 0.5

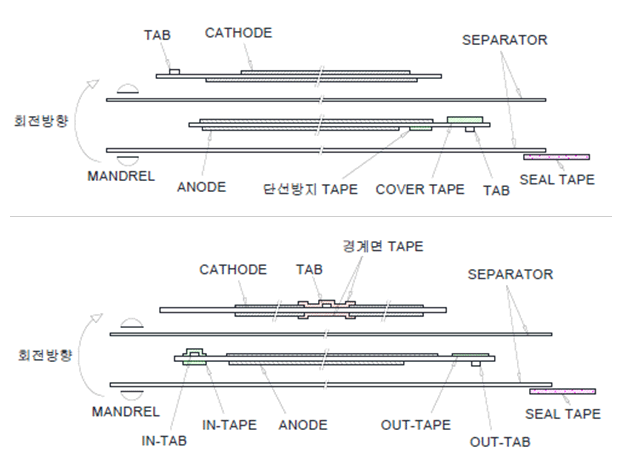

Winding Drawing

Automatic Winding Machines
Li Battery

Large Size Prismatic

Automatic Winding Machine For Lithium Battery Large Size Prismatic Type

  • Electric Vehicle
  • Motorcycle/E-Bike
  • Forklift/Golf Car
  • UPS/ESS
Specification
  • - Automatic Electrode and Separator Change System
  • - High speed of EPC (Edge Position Control)
  • - CCD vision system for alignments and tab size and shape
  • - Controlled by motion controller made by Omron Delta Tau (USA)
  • - Variable Winding Speed Control System for different mandrel angles
Element Size
Multi Tab Type
  • Size Sym Dimensions(mm) Tolerances
    J/R Height H 70~220 ± 0.7
    J/R Width W 100~180 ± 0.3
    J/R Thickness T 5~30 -
    SEAL TAPE Width D 10~30 ± 0.5
    SEAL TAPE Length L 30~180 ± 0.5
    TAB Height TH 8 - 30 -
    Cu TAB width 20 – 30 ± 1.0
    Al TAB width TW 20~30 ± 1.0
    Cu Tab position TS1 3~40 ± 0.5
    Al Tab position TS2 60~150 ± 1.0
    TAB Alignment 0 ≤ 2
Element Size
Whole Tab Type
  • Size Sym Dimensions(mm) Tolerances
    J/R Height H 70~220 ± 0.7
    J/R Width W 100~180 ± 0.3
    J/R Thickness T 5~30 -
    SEAL TAPE Width D 10~30 ± 0.5
    SEAL TAPE Length L 30~180 ± 0.5

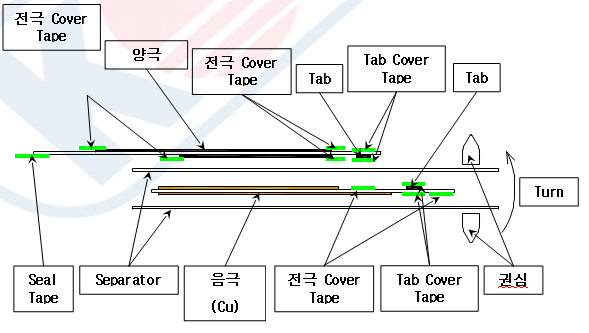

Winding Drawing
